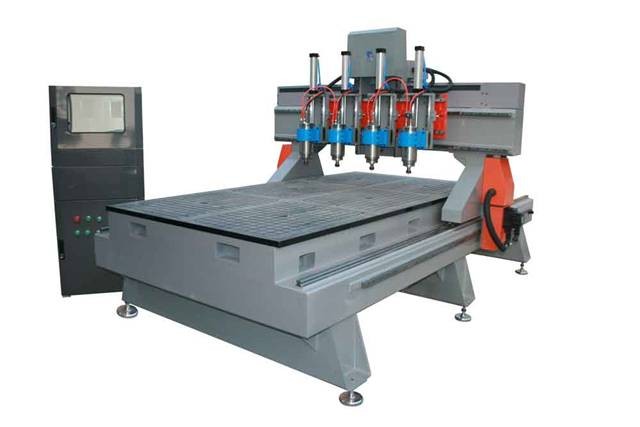

China four heads multi functional woodworking machine
patent NO.:201020173860.2 ; 20102173887.1)
Feature:
1 Compared with CNC router with ATC, this machine is cheaper but high speed for exchanging tools.
2 Easy to operate it.
3 Four cutters can be used freely, the efficiency can be increased up to four times if used at the same time.
4 The distance of four heads can be adjusted freely, suitable for different sizes of material carving at the same time.
Function:

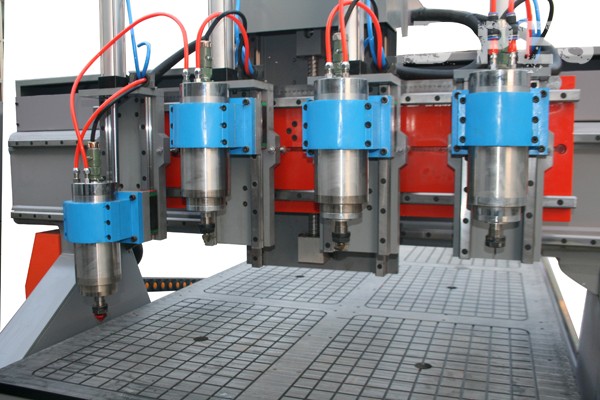

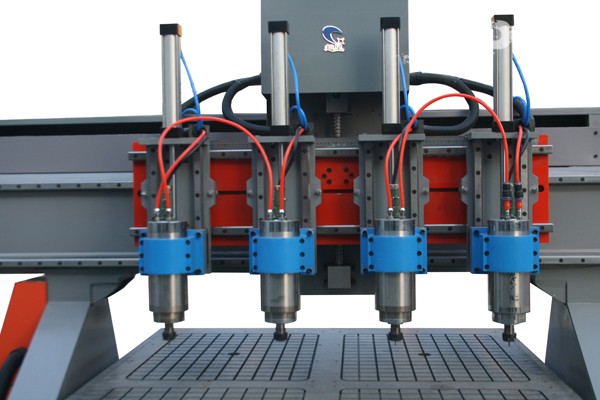

Function 1 Four spindles can work same time or separately, the efficiency can be increased by max four times.
Function 2 Four spindles with four different cutters start working one by one to realize max 4 station tool changing.
The two main function make the machine as market-oriented product in woodworking industry.
|
X, Y Working Area
|
1750×2500mm
|
| Z Working Area
|
200mm
|
| Travel Speed
|
15m\s
|
| Table Structure
|
by suction
|
| Working voltage
|
380V
|
| Drive System
|
stepper
|
| Machine Size
|
3.2×2.4×1.9m
|
| Packing Size
|
3.5×2.6×2.1m
|
| Weight
|
1.2t |
